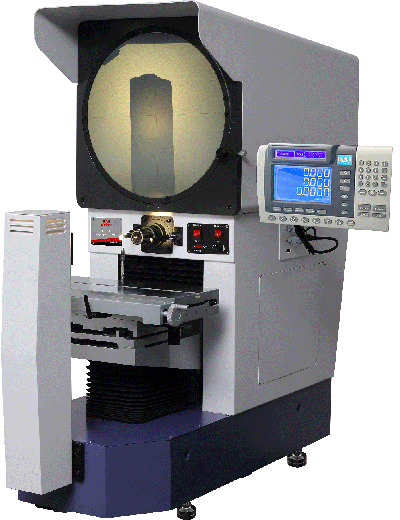

SP-25 Φ 350 Horizontal Profile Projector
Features:
The horizontal light-path is adopted, convenient for the detection of various axis parts; the rotation of worktable is possible. With structures strong in commonality, this instrument is light in weight and beautiful in appearance; Imported V-type straight-line slide-way is adopted for the hoisting driving of the worktable, light and comfortable in driving; The fiber transmission is adopted for the reflecting illuminating, which is small in dimensions, high in its brightness and convenient for uses; The two high-and-low adjustable illumination intensities for transmission illuminating can be adaptable for measuring requirements of different work-pieces;
Technical parameters:
Model |
SP-25 |
Projection screen: |
Φ 350 mm |
Rotation range: |
360° |
Objective Magnification Power |
10X 20X 50X 100X |
Object Visual Field |
φ35mm φ17.5mm φ7mm φ3.5mm |
Object Working Distance |
88 mm 81 mm 54 mm 45mm |
Range of X-coordinate (mm) |
200mm |
Range of Y-coordinate (mm) |
150mm |
Resolution: |
0.001 (mm) |
Load capacity of the worktable (kg) |
10kg |
Worktable area (mm) |
400x150mm |
Stroke of Z-coordinate (Focusing): |
0~80 (mm) |
Accuracy of the instrument: |
(3+L/75)μm, |
Transmission lighting: |
24V 150W Halogen tungsten lamp |
Reflecting lighting: |
24V 150W Halogen tungsten lamp |
Overall sizes of the instrument (mm): |
687×443×942 |
Mainframe weight: |
150 kg |
