PHT-550 Hardness
Tester
Application:
PHT-550 is a small, light and portable hardness tester. It is most
suitable for testing of heavy, big or outdoor metal parts. It can measure in
any direction and also easy to be used and accurate on curved test surfaces.
Especially, it can automatically compensate effect of weight which according to
the test direction.
Feature:
◆ Menu operation, easy and
convenient, large
LCD
display
◆ Key or touch type screen operation
◆ Automatic hardness conversion
◆ Large capacity rechargeable
battery
◆ Attached printer can be used to
print out testing result
◆ Automatic recognition for the type
of impact device
◆ Automatic detecting the impacting
direction
◆ The setup can be be saved
automatically
◆ Dual-operation both by keys or
touch screen
◆ Automatic storage for 800 groups
of testing data
◆ uses wireless to communicate with printer,
operates
with touch screen and test data could be
linked into PC.
Standard: ASTM A956 & DIN 50156 (in preparation)
Specification:
MODEL
|
PHT-550
|
HL display range
|
170~960HLD
|
Repeatability
|
4HLD
|
Testing direction
|
All direction
|

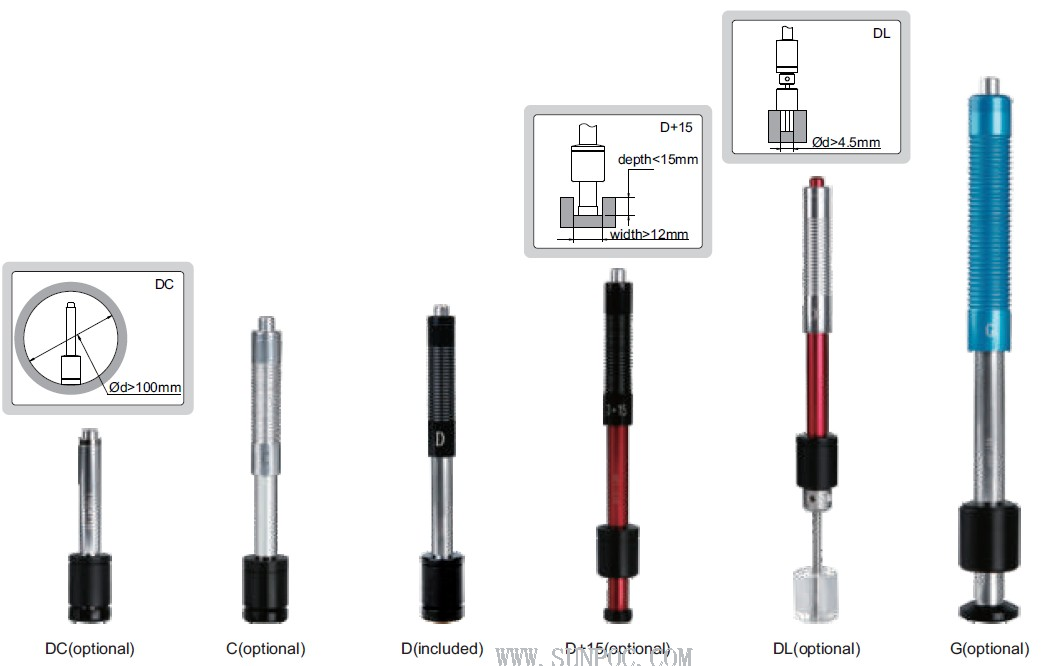

Optional Impact Device
|
D, DC, DL, D+15, C, G (automatic
identification)
|
Display
|
4.0” 240*320(touch screen), Bright and clear
LCD display with back light
|
Hardness conversion
|
HRC, HRB, HB, HV, HSD & tensile
strength
|
Multi-language menu
|
English, Korean, Deutsch, French, Italian,
Spanish, Russian, Polish, Chinese Simplified, Chinese Traditional
|
Power
|
3.7V (rechargeable li-ion battery)
|
Charging power supply
|
DC5.5V/1A
|
Printer
|
Wireless Mini-printer (Cable no needed)
|
Operating environment Temperature
|
-20°C~+50°C;
Humidity:20%~85%
|
Storage environment Temperature
|
-30°C~+70°C;
Humidity:5%~95%
|
Dimensions
|
180mm*90mm*30mm
|
Weight
|
350g (include D type impact device)
|
Standard accessories
|
Display Unit, Impact Device D, Test Block,
Mini-printer, Charger, Little Support Ring, Cleaning Brush, USB Cable,
Software CD
|
Options Impact Device
|
DC; DL; D+15; C; G
|

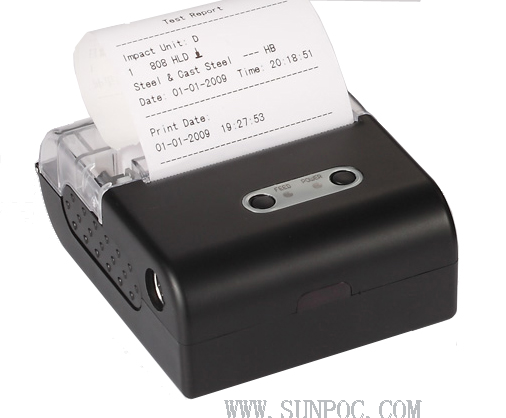

Bluetooth wireless printer:
1- Width of print paper: 57.5± 0.5mm
2- Diameter of paper roll: ≤30mm
(Heatsensitive print paper)
3- Printing speed: 5cm/sec.
(when power is enough)
4- Printing resolution: 203dpi (8dot/mm)
5- Working power supply: 650mAh 7.2V
rechargerable NiMH
6- Recharging power supply: DC 12V/1A
7- Dimensions: 90 x 76 x 36mm
8- Weight: 220g
(not including paper roll)
