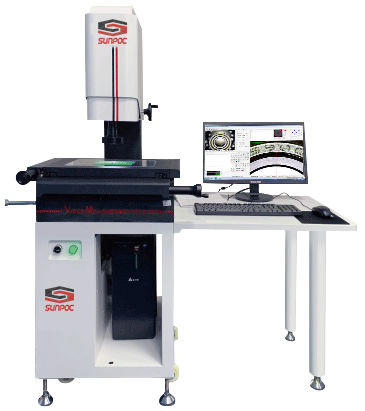

Features:
Adopting UK “RENISHAW”
probe system performs simple 3D contacted measurement.
Vision
measurement along with a touch probe solves the problems of geometrical
measurement
“HIWIN”
P level linear guideway and precision cross roller guideway for increased
accuracy & working life
Integrated
granite base and column ensures machine stability.
Supplied
with SBK-EP multifunctional 3D measuring software, automatic edge detection and
programmable lighting
Supplied
with removable & dismountable console base
High-definition
detent zoom lens and high-resolution CCD performs high-definition measurement.
Supports
different file formats of data output such as Word, Excel, CAD etc.
Specifications:
Model
|
EP200
|
EP300
|
EP400
|
Measuring range (mm)
|
200x100x200
|
300x200x200
|
400x300x200
|
Dimensions(mm)
|
750*1300*1500mm
|
750*1300*1500mm
|
900*1400*1500mm
|
Weight(kg)
|
160
|
170
|
250
|
Max. load(kg)
|
20
|
25
|
25
|
Accuracy
of X-Y axis (μm): 3+L/200
Repeatability(mm):
0.003
Measuring
mode:video
measurement + probe
Linear
encoder: exposed glass linear encoder with resolution of 1.0μm
Camera
type: SBK-HC536 1/3 inches 600 lines industrial color camera
Guideway:
Z axis: “HIWIN”P level guideway X-Y axis:precision cross roller guideway
Optics:
6.5:1 continual zoom detent body tube
Magnification:
optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software:
SBK-EP 3D measuring software
Profile
illumination: LED cold lighting with 256 level programmable brightness
adjustment
Surface
illumination: 48 LEDs cold lighting with 256 level programmable brightness
adjustment
Control
system: SBK-3000 data controller、USB
interface、software
controlled lighting
Probe
type: “RENISHAW” MCP probe system
Drive
type: Manual
