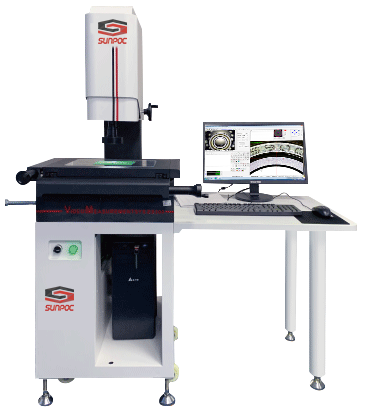

Features:

Adopting UK “RENISHAW” probe system performs simple 3D contacted measurement.

Vision measurement along with a touch probe solves the problems of geometrical measurement

“HIWIN” P level linear guideway and precision cross roller guideway for increased accuracy & working life

Integrated granite base and column ensures machine stability.

Supplied with SBK-EP multifunctional 3D measuring software, automatic edge detection and programmable lighting

Supplied with removable & dismountable console base

High-definition detent zoom lens and high-resolution CCD performs high-definition measurement.

Supports different file formats of data output such as Word, Excel, CAD etc.

Specifications:

Accuracy of X-Y axis (μm): 3+L/200

Repeatability（mm）: 0.003

Measuring mode：video measurement + probe

Linear encoder: exposed glass linear encoder with resolution of 1.0μm

Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera

Guideway: Z axis: “HIWIN”P level guideway  X-Y axis：precision cross roller guideway

Optics: 6.5:1 continual zoom detent body tube

Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X

Software: SBK-EP 3D measuring software

Profile illumination: LED cold lighting with 256 level programmable brightness adjustment

Surface illumination: 48 LEDs cold lighting with 256 level programmable brightness adjustment

Control system: SBK-3000 data controller、USB interface、software controlled lighting

Probe type: “RENISHAW” MCP probe system

Drive type: Manual
