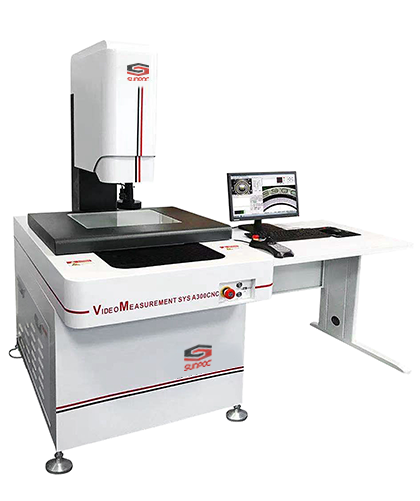

Features:
Measuring
table is made of aerospace aluminum alloy with high rigidity. Suitable for
high-speed movement, this material is very light and with low inertia to ensure
the long-term stability of the machine.
Imported
key components with rigorous, normative assembling and adjustment
4-axis
controls, full automatic measurement
Being
equipped with full automatic zoom body tube performs 4-axis auto-measurement.
Adopting
high-definition “DAHENG” frame grabber ensures the image sharpness of
measurement
“THK”
high precision linear guideway and ground ball screw
“RENISHAW”
metal linear encoder with high resolution of 0.5μm
Adopting
“RENISHAW” probe system realizes 3D contacted measurement
Specifications:
Model
|
AZ300CNC
|
AZ400CNC
|
AZ500CNC
|
Measuring
range(mm)
|
300x200x180
|
1600x1200x1650
|
1800x1400x1650
|
Dimensions(mm)
|
1450x1050x1650
|
1600x1200x1650
|
1800x1400x1650
|
Weight(kg)
|
450
|
550
|
650
|
Max.
load(kg)
|
20
|
25
|
25
|
Accuracy
of X-Y axis (μm): 2+L/200
Accuracy
of Z axis (μm): 5+L/200
Repeatability(mm):0.002
Moving
speed (mm/s): X, Y: 0~400 Z: 0~100
Linear
encoder: “RENISHAW” metal linear encoder with resolution of 0.5μm
Camera
type: SBK-HC600 1/2 inches 700 lines industrial color camera
Frame
grabber: “DAHENG” color frame grabber with high definition
Guideway:
“THK” SP level precision linear guideway
Ball
screw:“THK” ground ball screw
Optics:
6.5:1 continual automatic zoom body tube
Magnification:
optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software:
SBK-CNC full-automatic measuring software
Profile
illumination: LED cold lighting with 256 level programmable brightness
adjustment
Surface
illumination: 6 rings 8 segments LED cold lighting with segmented independent
control and 256 level programmable brightness adjustment
Control
system: SBK4000 fully closed-loop control
Motor:“PANASONIC”
synchronous AC servo motor
Operated
mode: software + joystick
