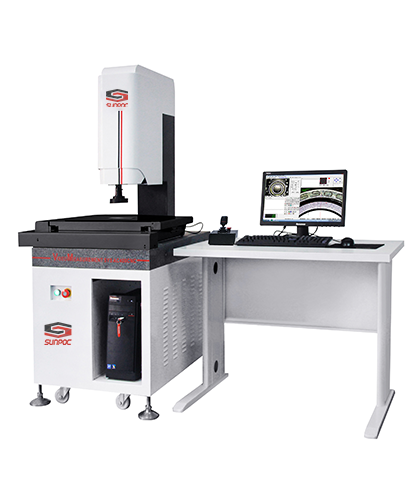

Features:
X-Y-Z 3-axis CNC full-automatic measuring
system
Imported key components with rigorous,
normative assembling & adjustment
3-axis CNC controls, full-automatic
measurement
Equipped with high-definition detent body
tube
High-definition frame grabber
Precision “HIWIN” P level linear guideway
& cross roller guideway; high-precision linear drive nut made by Germany
High-resolution exposed linear encoder with
resolution of 1μm
Specifications:
Model
|
AC300CNC
|
AC400CNC
|
AC500CNC
|
Measuring range(mm)
|
300x200x180
|
400x300x180
|
500x400x180
|
Dimensions(mm)
|
850x1300x1550
|
1000x1400x1550
|
1200x1500x1550
|
Weight (kg)
|
250
|
350
|
450
|
Max. work-piece load (kg)
|
20
|
25
|
25
|
Accuracy of X-Y axis (μm): 3+L/150
Accuracy of Z axis (μm): 5+L/100
Repeatability(mm)0.005
Moving speed (mm/s): X-Y: 0~150 Z: 0~100
Linear encoder: exposed glass linear
encoder with resolution of 1.0μm
Camera type: SBK-HC536 700 lines industrial
color camera
Frame grabber: color frame grabber with
high resolution
Guideway: Z axis:“HIWIN” P level linear
guideway X-Y axis:precision cross roller guideway
Ball screw: Z axis:“TBI” ground ball screw X-Y axis:linear drive nut
Optics: 6:5:1 continual zoom detent body
tube
Magnification: optics zoom ratio: 0.7-4.5X;
image zoom ratio: 24-158X
Software: SBK-JCNC full-automatic measuring
software
Profile illumination: LED cold lighting
with 256 level programmable brightness adjustment
Surface illumination: 4 rings 8 segments
LED cold lighting with segmented independent control & 256 level
programmable brightness adjustment
Control system: SBK3400 fully closed-loop
control
Motor: “TIGER” synchronous AC servo motor
Operated mode: software
