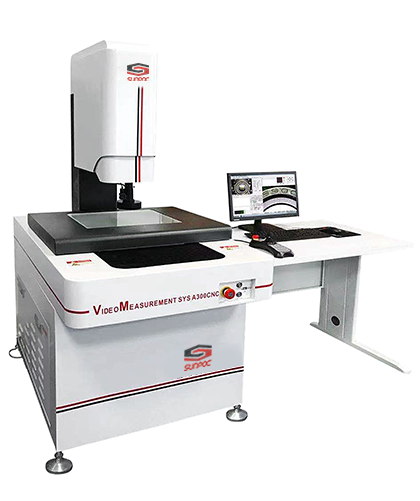

3D probe video measuring machine

Features:

Adopting UK “RENISHAW” probe system performs simple 3D full-auto contacted measurement.

Measuring table is made of aerospace aluminum alloy with high rigidity. Suitable for high-speed movement, this material is very light and with low inertia to ensure the long-term stability of the machine.

Imported key components with rigorous, normative assembling & adjustment.

3-axis CNC controls; full-automatic measurement.

Being equipped with a navigational body tube realizes the function of map navigation.

Adopting high-definition frame grabber ensures image sharpness of measurement.

“HIWIN” SP level precision linear guideway and “TBI” ground ball screw

High-resolution exposed linear encoder with resolution of 1μm

Specifications:

Accuracy of X-Y axis (μm): 3+L/200

Accuracy of Z axis (μm): 5+L/200

Repeatability（mm）: 0.002

Moving speed (mm/s): X-Y: 0~400    Z: 0~100

Linear encoder: exposed glass linear encoder with resolution of 1.0μm

Camera type: SBK-HC536 700 lines industrial color camera

Frame grabber: “DAHENG” dual channel color frame grabber with high definition

Guideway: “HIWIN” SP level precision linear guideway

Ball screw: “TBI” ground ball screw

Optics: 6.5:1 continual zoom navigational body tube

Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X

Software: SBK-CNC full-automatic measuring software

Profile illumination: LED cold lighting with 256 level programmable brightness adjustment

Surface illumination: 4 rings 8 segments LED cold lighting with segmented independent control & 256 level programmable brightness adjustment

Control system: SBK4000 fully closed-loop control

Motor: “TIGER” synchronous AC servo motor

Probe type: “RENISHAW” MCP probe system

probe system: Software + Joystick operated full-auto measuring.

Operated mode: Software + Joystick
