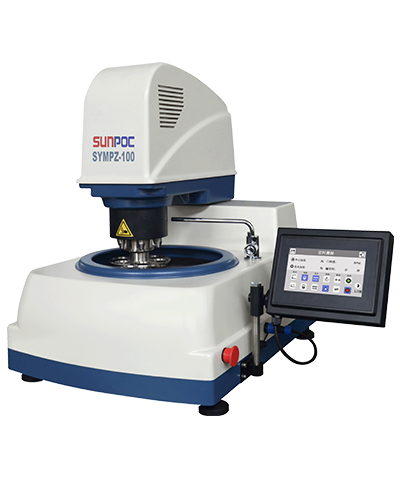

SYMPZ-100(300\250) Automatic Metallographic SampleGrinding and Polishing Machine
Description:
In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is controlled by single chip microcomputer. With beautiful appearance, stable performance and convenient operation, it realizes the automation of grinding and polishing. Therefore it is the ideal equipment for metallographic sample preparation.
Features:
l New and beautiful appearance, ABS material integral forming.
l It adopts high definition LCD touch screen, clear to display and easy to use.
l DC brushless motor, used for a long time; super mute design brings a good experience.
l The grinding disc is made of stainless steel, firm and steady.
l Strong large support chassis design ensures the precision rotary balance.
l Spindle leak-proof design ensures the bearing without damage.
l The size of the disc is larger than the same products in the market, can select 300mm or 250mm grinding disc, adapted to various materials preparation of test samples.
l Grinding disc stepless speed or four speed control, clockwise or anticlockwise rotating direction, which makes the sample smooth and clean.
l With magnetic grinding disc design, it supports for fast disc replacing system, the plate is Teflon painted which makes no residue of changing polishing cloth.
l Equipped with the automatic grinding head, it replaces the manual grinding and polishing. And it can set time and rotating speed of grinding head, with lighting system, it improves the grinding and polishing quality and efficiency of samples.
l It can store ten kinds of grinding and polishing procedure, set different parameters for different samples.
l With optional ZDD-1 automatic dropping device, it can set time and drop uniformly for the suspension.
Main Parameters:
Grinding and Polishing Disc Diameter: 300mm or 250mm
Abrasive Paper Diameter: 300mm or 250mm
Rotating Speed: 100~1000r/min, stepless Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Rotating Direction: Clockwise or Anticlockwise
Electromotor: DC brushless motor, 220V, 1.1kw
Sample Holding Quantity: 6 pcs
Sample Holder Specification: Φ22mm, Φ30mm, Φ45mm (choose one)
Pressure Method: Single pneumatic pressure / Central pneumatic pressure
Single Pressure Force: 0~8kg
Central Pressure Force: 0~33kg
Rotating Speed of Grinding Head: 30~120r/min, stepless
Time Setting: 0~999min
Electromotor of Grinding Head: DC brushless deceleration motor, 220V, 100W
Dimensions: 725×500×760mm
Weight: 75kg
