Features:

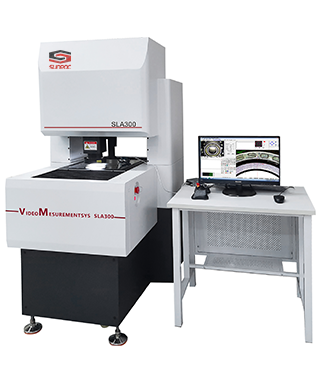

The SLA series advantageadopts stable fixed bridge structure, use high-end  central processing unit, it has high precision and abundant configurations.

Equipped with 1:8 high resolution automatic coaxial optical system.Equipped with high anti-interference metal linear ruler.Equipped with full closed-loop control system

Reasons for choosing

1. Equipped with 1:8 telephoto lens tube, the same design concept and process as LA series optical system, and equal to the best lens tube in the world lens tube, maintenance cost is very low.

2, the use of granite structure, fixed bridge, mobile table structure, precision ball screw, reduce abbe error.

3, diversified light source design, to solve the problem of measurement, visible, clear, reliable and stable.

Wide range of applications, strong practicability.Widely used in: automotive electronics, mobile phone parts, precision machining, metal processing parts, plastic parts, liquid crystal panels and related components to provide composite measurement solutions.Small square grooves and small holes make it easy to measure through holes and surface profiles using optical probes.Specify coordinate position points, evaluate flatness and measure side bore dimensions using contact probe.

Specification:ecifications:

Resolution:0.5um metal linear scale

X, Y axis max speed：400mm/s

X, Y max acceleration：800mm/s

Z axis maximum speed:50mm/s

Optical zoom:0.6 ~ 5 X automatic coaxial optical system,24x-200x

Imaging device:2.0 mpexl (1/2inch) Gigabit color digital camera

Motor:panasonic servo motor

Light source：Programmable adjustment: LED coaxial reflection light source /4 ring 8 partition LED reflected light source / Light source Spherical integral parallel light path transmission light source

Expansion and Upgrade (Optional)：Laser sensor /3D probe system/liftable light
