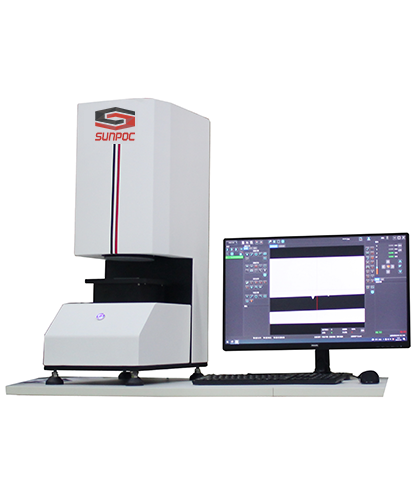

QM Instant video measuring machine
Flat dimensional fast measurement solution
Features:
Can complete all the required measurement with a key, including distance, radius, diameter, Angle, true straightness, true roundness, directly feedback on the machine panel whether the measurement results are qualified, accurate and objective quality testing of the production workpiece. Suitable for bearing size, gasket, o-ring size, magnetic material measurement, gear, taper thread, mechanical parts measurement.
Specification:ec
| Model | QM40 | QM60 | QM90 | QM110 | QM180 |
| Measuring vision fied(mm) | 42*35mm | 65*43mm | 90*60mm | 110*75 | 180*130 |
| Contour measuring accuracy | 1.5um | 2.0um | 2.5um | 3.0um | 3.5um |
| Surface measurement accuracy | 2um | 2.5um | 3.5um | 4.5um | 5.0um |
| Z-axis focusing range | 45mm | 55mm | 55mm | 100mm | 100mm |
Move device:Z axis electric lifting
Image sensor:20 megapixel ultra HDMI CMOS sensor
Display：27 inch HDMI monitor (1920*1024)
Optical lens barrel：double telecentric lens
Measurement speed:≤1s(within 20 inch) ≤3s(within 50 inch)
Light source:Circular LED reflective light source/Coaxial reflection source/Coaxial transmission light source
