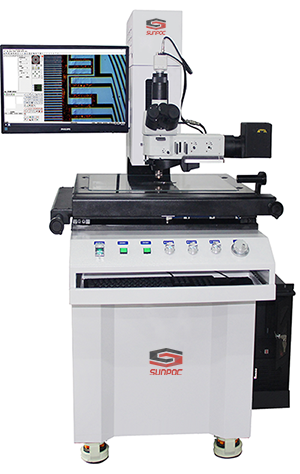

MC/MA 400 Tool Metallographic Microscope
MC/MA 400 metallographic microscope set automatic focusing system, trimming, DIC, the polarized light system, the system into an organic whole, can fully ensure the appearance observation and measurement in TFT panel production requirements, according to the process requirements of different products with different hardware and software in the process of production can meet the liquid crystal industry upstream and downstream of the different production requirements, improve quality control
Specification:e
| Model | MC300 | MC400 | MC500 |
| Model | MA300 | MA400 | MA50 |
| Measuring Range（mm） | 300*300*200 | 400*300*200 | 500*400*200 |
| X、Yaxis precision（um） | 2.0+L/200 | 2.5+L/200 | 2.5+L/200 |
| Zaxis accuracy（um） | 3.5+L/200 | 3.5+L/200 | 3.5+L/200 |
| X Y vector precision（um） | 3.0+L/200 | 3.8+L/200 | 4.0+L/200 |
Max load weight(kg):MC300/MC400:25kg/MC500:30kg ;MA300/MC400/MC500:25kg
Shockproof device:optional/standard
Operating device(MC):XY manual, Z-axis servo motor autofocus + 0.1fine hand pulse
Operating device(MA):XY manual, Z-axis motor up-down +0.3 fine hand pulse
Resolution：0.1um
Fine-tuning displacement accuracy：MC 0.0001mm/ MA0.0003mm
Metallurgical system：Infinity trinocular optical system:5X,10X,20X,50X( Bright field) objective
Eyepiece：10X/23
Measuring software：SBK-S Semi-automatic measuring software/ MA manual software
Z-axis move device(MC):Semi-automatic controller + servo motor
Z-axis move device(MA):PLC + servo motor
Light source：LED or halogen coaxial reflection light source、100W optical fiber transmission cold light source box
