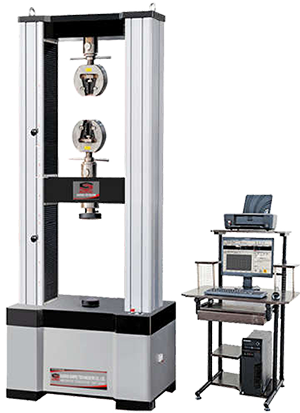

TNW-30D Electronic Universal Testing Machine
TNW-D Series microcomputer control electronic universal testing machine is compacted and easy operating for users. It’s widely used in materials tensile, compression, bending, peeling, shearing stretching tearing etc. The machine middle crossgirder is guided by high precision guide rod, which has high rigidity and good linear motion features. Varied fixtures fit for different samples, load cell sensors, deformation measurement sensors and other accessories can meet almost all customer’s needs. The flexible and easy operating software makes the user's testing process easier. Test solutions cover plastics, metals, automotive, building materials, textiles, paper and board, food and packaging, and composites.
Specification list:
Standard model | TNW-30D |
Max testing force | 30/kN |
Test grade | 1 class |
Testing force accuracy | ±0.5% |
Testing force range | 0.4-100%Fs |
Force resolution | 1/300000Fs |
Deformation accuracy | ±0.5% |
Deformation resolution | 0.001mm |
Displacement accuracy | ±0.5% |
Displacement resolution | 0.001mm |
Speed range (mm/min) | 0.001～500 |
Control accuracy | ±0.5% |
Crosshead move range | 1300 |
Pull space | 800mm |
Push space | 900mm |
Test wide | 420 |
Grip body | one suit |
Flat jaw(mm) | 0-7 |
7-14 (O) |
14-20(O) |
Round jaw(mm) | Ф4~Ф9 |
Ф9-Ф14 (O) |
Ф14-Ф20(O) |
Pressure plate(mm) | Ф100 x1 |
Bending clamp | (optional) |
Extensometer | 10/50mm(optional) |
Large deformation | Large deformation extensometer 0-800mm(optional) |
Motor | servo motor |
Power supply | 220V |
Machine dimension(mm) | 740×420×1720 |
Weight | 400Kg |
