JBW-300Z Automatic computer Control Impact Testing Machine

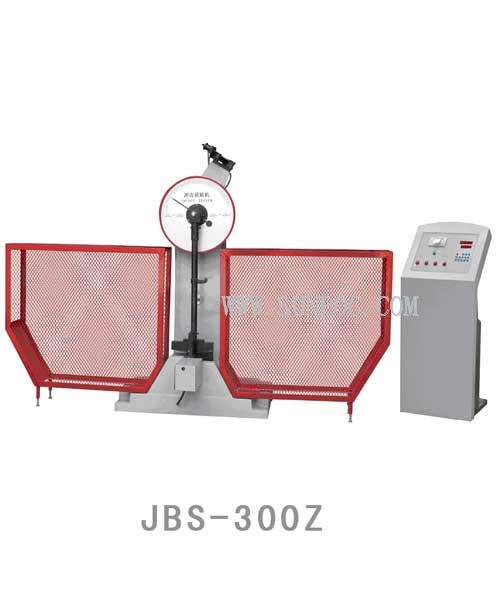

JBS-300Z Automatic Digital Control Impact Testing Machine
The series impact testing machine is controlled automatically,it can realized operation of rising pendulum→sending speciment→positioning→second rising pendulum etc ,have high operation efficiency and high testing accuracy.- the testing machine is suitable to be used in laboratories which make consecutive impact tests or the metallurgy and machine manufacturing sectors which are involved with a large amount of impact tests.
Specification Technical:
|
Model |
JBW-300Z |
JBW-500Z |
|
|
JBS-300Z |
JBS-500Z |
|
impact energy |
150J、300J |
250J、500J |
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
|
impact speed |
5.2m/s |
5.4 m/s |
|
Display type |
Computer / Digital Readout |
|
Pre-rising angle of pendulum |
150° |
|
Speciment bearer span |
40mm |
|
Round angle of the jaw |
R1-1.5mm |
|
Round angle of impact cutting edge |
R2-2.5mm、R8mm |
|
Accuracy of angle |
0.1° |
|
Speciment specification |
10×10×55mm |
|
Speciment box capacity |
10个 |
|
Sending sample centering type |
automatically |
|
power supply |
380V/50Hz/5A |
