Upright Metallurgical Microscope UMM-100 and UMM-200
The upright trinocular metallurgical microscope has a polariscope with a big working stage.
Features:
Upright design is suitable to find a fixture object and to observe, research and analyse the object on a broader surface. The instruments are widely applicable in the field of IT, PCB and micro pellets、threads、fibre、surface coatings etc., and testing、researching、and analysing metallurgical struture of materials. They are also broadly suitable for factories、laboratories、and teaching and researching areas.

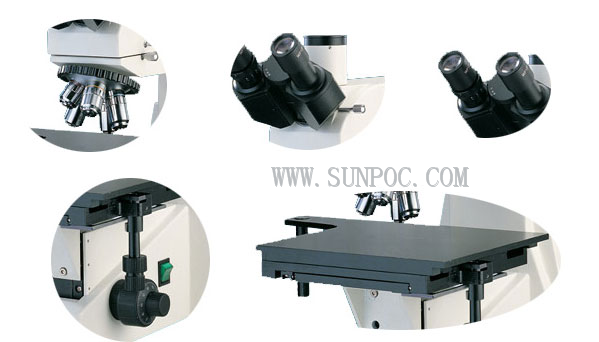

A big shifting range loading stage is suitable to observe the specimen of large PCBs and silicon wafers etc.
The polarising co-axial epi-illuminating system, generating sharp pictures and clarifying contrasts, is proper for various complicated ovservations and shoots.
Swift co-axial vertical and horizontal shiting loading stage and a variety buitl-in fliter switching make operation easy.
Magnification and field (Standard)：
|
Plan achromatic objective with long working distance |
Wide field eyepieces WF10×/18 |
Plan ocular (optional) PL12.5×/16 |
|
Type |
magnify |
N.A |
System |
Working distance(mm) |
View field(mm) |
Total magnify |
view field(mm) |
Total magnify |
|
Plan field |
PL5× |
0.12 |
dry |
35.4 |
Ф4.2 |
50× |
Ф3.4 |
63× |
|
LWD |
PLL10× |
0.25 |
15.3 |
Ф2.9 |
100× |
Ф2.3 |
125× |
|
LWD |
PLL20× |
0.4 |
8.67 |
Ф1.6 |
200× |
Ф1.3 |
250× |
|
LWD |
PLL40× |
0.6 |
3.63 |
Ф0.48 |
400× |
Ф0.38 |
500× |
|
LWD |
PLL60× |
0.75 |
2.26 |
Ф0.37 |
1000× |
Ф0.30 |
750× |
Specifications:
|
Models |
UMM-100 |
UMM-200 |
UMM-100A |
UMM-200A |
|
Optical |
Total amplification |
50×100×200×400×600× |
|
system |
achromatic objective |
PL 5× PLL 10× PLL 20× PLL 40×
PLL 60×（PLL Long Working Distance） |
|
|
Wide field
eyepieces |
WF10×/18 |
|
Attachment Test |
Cross WF eyepiece and micrometers |
10×zoom graduation 0.1/18 mm micrometer 0.01/1 mm |
|
Frame |
Basic Structure |
Upright Design, Hinge Trinocular Tube：45°obliquity,
Pupil distance 55-75 mm, Diopter ±5% (adjustable) |
|
Revolving objective |
5 hole ball bearing circumvolve |
|
Double layer stage |
230x230mm; move range: 150×150mm, with swift shifting and locking system |
270x270mm, moving range 200x200mm with swift shifting and locking system |
|
focusing system |
Coaxial coarse and fine, Up-down adjusting range:35mm, Vernier Calibration 0.002 mm, Systems up-down adjusting locking and torque adjusting |
|
focusing modes |
Lifting stage |
Lifting
lens tubes |
Lifting stage |
Lifting
lens tubes |
|
Illumination systems |
Reflected illumination |
Kohler Illumination, Variable Aperture and field diaphragm,
Adjustable, Brightness, halogen lamp 20W/6V |
|
Inside switching color filters: yellow/green/blue/frosted |
|
Built-in |
External |
Built-in |
External |
|
Polarizing light system |
Co-axial epi-illuminating polarizing setting：polarizer and analyzer |
|
Power supply |
AC220V/50Hz 30W |
|
Package |
Weight：17Kg, Package Size: 550x540x470 Cm |
Complete accessory：
|
Main body |
Light Source |
|
Big stage |
wire |
|
Trinocular Tube |
dust cover |
|
Plan objectives |
Spare fuse |
|
Wide field eyepieces |
spare lamp |
|
divisional eyepiece |
Manual |
|
Micrometer |
qualified certificate |
|
filters |
Packing list |
|
Polarizing sheets |
Warranty |
|
Vertical Illumination |
|
Optional accessories：
|
A. Eyepieces and Field Lens：
various magnification ratio |
B. Image Processing System（UMM-201AV） |
|
C. Digital Photography System
（UMM-201AD） |
D. Metallurgical Image Analyzing
System（UMM-201AM） |
