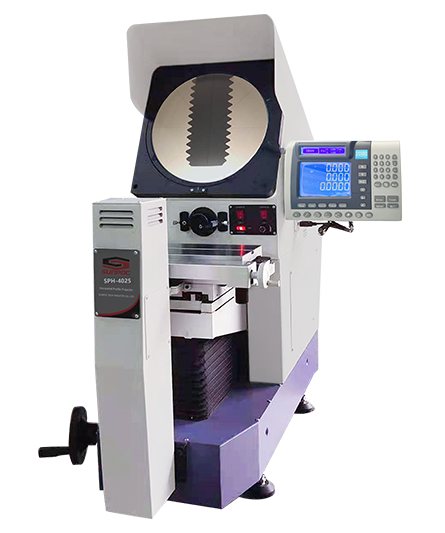

Horizontal Profile Projector SPH-4025
Features:
The product structures are strong in commonality, this instrument is beautiful in its outward appearances and convenient for operations; Imported V-type straight-line slide-way is adopted for the hoisting driving of the worktable, light and comfortable in driving; The two high-and-low adjustable light intensities for transmission and indirect lightings can be adaptable for measuring requirements of different workpieces; In high quality in its optical system, the objectives are clear in imaging and accurate in multiplying factors; The fiber transmission is adopted for the indirect lighting, which is small in dimensions, high in its brightness and convenient for uses; Casting aluminum is selected for the processing of worktables, light in weight; This instrument is of super-precision, with stable and reliable performances.
SPH-4025, φ400mm horizontal projector is a photoelectric measuring system of high precision and efficiency. It is widely used in the trade of mechanism, mould, tool, electricity and light industry. It is a require in the checking department and workshop. The type optical comparator can inspect all kinds of surface and outline of the complicated work-pieces, such as template, cam, tread, gear, perform willing cutter and so on.
Specificarion:
Model |
SPH-4025 |
Working table |
Stage size(mm) |
450*200 |
X-axis travel(mm) |
250 |
Y-axis travel(mm) |
150 |
Z-axis travel(mm) |
100(for focus) |
Turning range |
±15° |
Resolution |
(X-axis, Y-axis) 0.5μm |
Accuracy |
(3+L/25)um |
Projector screen |
Screen size (mm) |
φ 400 |
Screen rotary range |
0°~360° |
Rotary angle resolution |
1 ′ or 0.01° |
Lens |
Magnification |
5X |
10X |
20X |
50X |
100X |
Object view(mm) |
φ80 |
φ40 |
φ20 |
φ8 |
φ4 |
Working distance(mm) |
93.7 |
103.9 |
95.1 |
65.7 |
35 |
Data processing system |
multi-function data processing system, appearing in English, Portuguese and Chinese, can be used to gather the data and measure the point, line, circle, angle and distance |
Illumination |
Transmission: 24V/150W,cooling by fans. |
Reflection:21V/150W,illuminated by two fibers ,cooling by fans. |
Power |
110V/220V(AC) 50/60Hz total power=400W |
Dimension |
L*W*H(mm) 1215*646*1210 |
Weight |
Unit:(kg) 240 |
Option |
Mini-printer, Edge detector, M2D software and so on, please refer to Accessories for profile projector for more details. |
|
