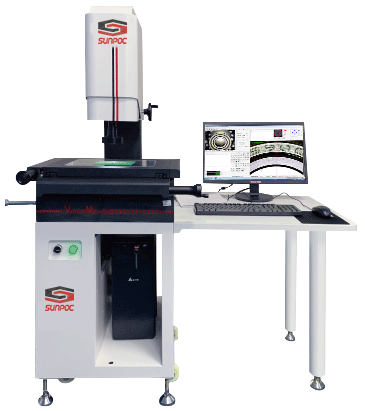

Features:
“HIWIN” P level linear guideway and
precision cross roller guideway for increased accuracy & working life
Integrated
granite base and column ensures machine stability.
Supplied
with SBK-E multifunctional 2.5D measuring software, automatic edge detection
and video height measurement
Supplied
with removable & dismountable console base
High-definition
detent zoom lens and high-resolution CCD performs high-definition measurement.
Supports
different file formats of data output such as Word, Excel, CAD etc.
DXF
import for quick inspection.
Specifications:
Model
|
E200
|
E300
|
E400
|
Measuring
range(mm)
|
200x100x200
|
300x200x200
|
400x300x200
|
Dimensions(mm)
|
750*1300*1500mm
|
750*1300*1500mm
|
900*1400*1500mm
|
Weight(kg)
|
160
|
170
|
250
|
Max.
load(kg)
|
20
|
25
|
25
|
Accuracy
of X-Y axis (μm): 3+L/200
Repeatability(mm):0.003
Measuring
mode:video
measurement
Linear
encoder: exposed glass linear encoder with resolution of 1.0μm
Camera
type: SBK-HC536 1/3 inches 600 lines industrial color camera
Guideway:
Z axis:“HIWIN” P level
linear guide way
X-Y
axis:cross roller
guide way
Optics:
6.5:1 continual zoom detent body tube
Magnification:
optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software:
SBK-E 2D measuring software
Profile
illumination: LED cold lighting with 256 level programmable brightness
adjustment
Surface
illumination: 48 LEDs cold lighting with 256 level programmable brightness
adjustment
Control
system: SBK-3000 data controller、USB
interface、software
controlled lighting
Drive
type: Manual
