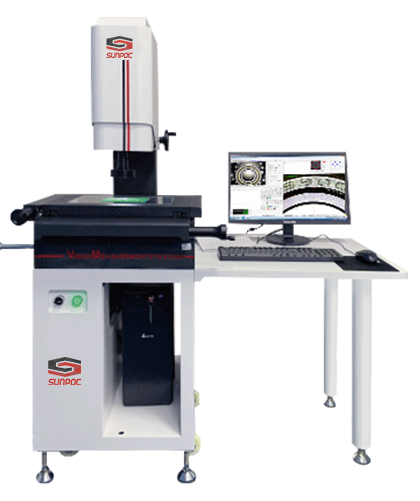

Features:
Z-axis adopts
servo motor driving, to realize motorized autofocus & improve the manual
operability of machine.
Granite
base with sturdy frame construction
Autofocus
& semi-automatic measurement solve the problems of geometrical measurement
“HIWIN”
P level linear guideway and precision cross roller guideway for increased
accuracy & working life
High-definition
detent zoom lens and high-resolution CCD performs high-definition measurement.
Supports
different file formats of data output such as Word, Excel, CAD etc.
Specifications:
Model
|
S300
|
S400
|
Measuring
range(mm)
|
300x200x200
|
400x300x200
|
Dimensions(mm)
|
750*1300*1500mm
|
900*1400*1500mm
|
Weight(kg)
|
170
|
250
|
Max.
load(kg)
|
25
|
25
|
Accuracy
of X-Y axis (μm): 3+L/200
Accuracy
of Z-axis (μm):5+L/200
Moving
speed of Z axis (mm/s): 0~100
Linear
encoder: exposed glass linear encoder with resolution of 1.0μm
Camera
type: SBK-HC536 700 lines industrial color camera
Guideway:
Z axis:“HIWIN” P level
linear guideway
X-Y
axis:precision cross
roller guideway
Ball
screw:Z axis:“TBI” ground ball screw X-Y axis: linear drive nut
Optics:
6.5:1 continual zoom detent body tube
Magnification:
optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software:
SBK-S semi-automatic measuring software
Profile
illumination: LED cold lighting with 256 level programmable brightness
adjustment
Surface
illumination: LED cold lighting with segmented independent control & 256
level programmable brightness adjustment
Motor
of Z-axis: “TIGER” synchronous AC servo motor
Control
system: SBK-3000 data controller、USB
interface、software
controlled lighting
